UXO Overdrive
Raw, touch-sensitive aggressive medium-gain overdrive with an external Fuse bias control.
UXO moves from lighter, more open overdrive toward dense, rougher saturation that approaches fuzz territory—without becoming sputtery or gated. Even at saturated settings, it cleans up smoothly from the guitar’s volume control.
$129 · In stock
Reverb includes free U.S. shipping. Etsy shipping is shown at checkout.
From open overdrive to near-fuzz saturation
UXO starts with a raw, touch-sensitive overdrive response and gives you direct control over how dense and saturated it becomes.
Turn Fuse counterclockwise for a lighter, cleaner, more open sound. Turn it clockwise to increase density, roughness, and saturation until the pedal begins to approach fuzz territory.
Even at the more saturated end of the range, UXO remains responsive to pick attack and cleans up smoothly from the guitar’s volume control. It does not collapse into sputtery or gated breakup.
Shape the saturation, then work it from the guitar
UXO is designed to serve as the primary drive voice in your rig.
Use Fuse to establish how open or saturated the drive feels, set Gain for the output level you need, and use Tone to balance darker or brighter response.
From there, pick attack and the guitar’s volume control become part of the pedal. Play lightly or roll the guitar back for a cleaner, more restrained sound. Dig in or turn the guitar up to restore its full aggressive response—even at denser Fuse settings.
Controls
Gain
Sets the output volume.
Despite its label, Gain does not directly control the amount of distortion. Turn it clockwise to increase the pedal’s output level and push the amplifier or next pedal harder.
Fuse
Adjusts the transistor bias and changes the density and saturation of the drive.
Turn Fuse counterclockwise for a lighter, cleaner, more open overdrive response.
Turn it clockwise for denser saturation, a rougher edge, and a sound that approaches fuzz territory without becoming sputtery or gated.
Tone
Adjusts the overall tonal balance.
Turn it counterclockwise for a darker sound and clockwise for a brighter response.
Responsive even when saturated
UXO keeps its connection to the guitar even as Fuse moves it toward denser, near-fuzz saturation.
Roll back the guitar’s volume for a cleaner, more restrained response, then turn it back up to restore the pedal’s full aggression. Pick attack remains part of the sound throughout the range.
That responsiveness makes UXO useful as a primary drive rather than a one-setting effect.
Who UXO is for
UXO is especially well suited to players who want:
A raw, aggressive medium-gain overdrive
A primary drive voice rather than a simple boost
Touch-sensitive response throughout the drive range
Smooth cleanup from the guitar’s volume control
External control over transistor bias
A range from lighter, open overdrive to dense saturation approaching fuzz
It may not be the right pedal for you if…
You want a smooth, heavily compressed drive, a conventional gain control that directly adds distortion, or sputtery and gated voltage-starved sounds.
Built around controlled instability
UXO’s design centers on instability as a musical control rather than a hidden internal condition.
That idea is most visible in the Fuse knob, which lets you reshape the transistor bias from the pedal face. Turn it down for a lighter, more open drive response, or turn it up for denser, rougher saturation that approaches fuzz territory.
The visual design reflects that same idea: a pedal whose character can be pushed, stressed, and reshaped without falling apart into sputter or gated collapse.
Hand assembled and individually tested

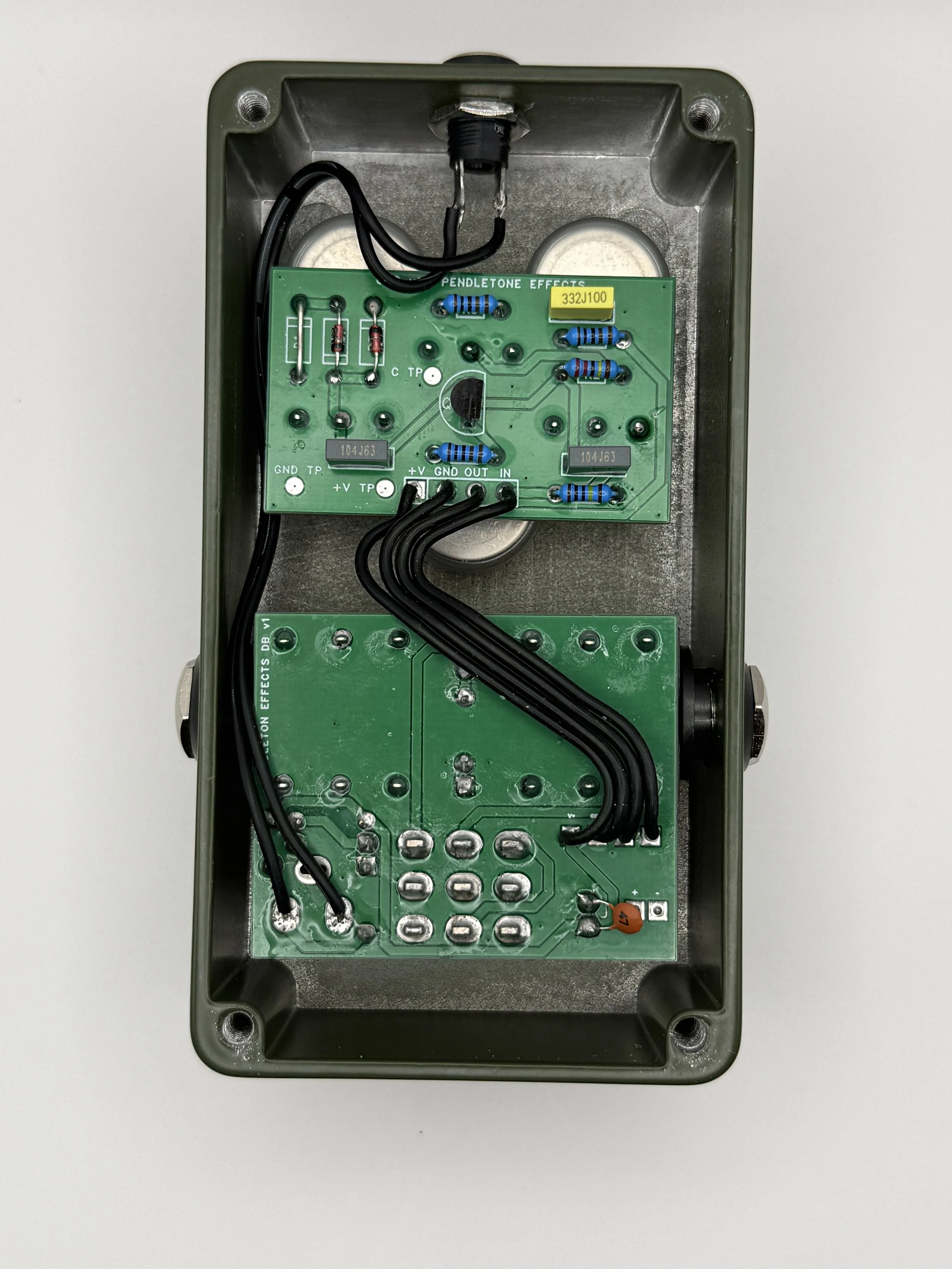

Each UXO is hand assembled by Pendletone Effects using through-hole components on a professionally manufactured printed circuit board.
Every pedal is individually tested before shipping, then dated, serialized, and signed inside the enclosure.
That process helps verify that each unit is working as intended before it leaves the bench.
Specifications
Effect type: Aggressive medium-gain overdrive
Controls: Gain, Fuse, Tone
Gain range: Light, open overdrive to dense saturation approaching fuzz
Transistor bias: Externally adjustable with the Fuse control
Bypass: True bypass
Switching: Soft-click footswitch
Power: Standard 9V DC, center-negative
Battery operation: Not supported
Power supply included: No
Enclosure: Standard 1590B
Dimensions: 67 × 117 × 52 mm
Dimensions in inches: 2.64 × 4.61 × 2.05 in
Measurement basis: Includes installed knobs and jacks
Input and output: Side mounted
Power connection: Top mounted
Assembly: Hand assembled in Fort Leavenworth, Kansas
Construction: Through-hole components on a professionally manufactured PCB
Shipping and availability
UXO is currently in stock.
In-stock orders normally ship through USPS within two business days of purchase, excluding weekends and holidays. Pendletone Effects currently ships within the United States only.
Reverb: Free U.S. shipping
Etsy: Shipping shown separately at checkout
International shipping: Not currently available
Purchases and returns are completed through the selected marketplace and are subject to the policies displayed there at the time of purchase.
Included with purchase: UXO overdrive pedal. Power supply not included.
Four-year limited warranty
UXO includes a four-year limited warranty for the original purchaser, beginning on the original purchase date. Proof of purchase is required.
The warranty covers manufacturing defects. It does not cover damage caused by abuse, incorrect power, or environmental exposure.
The customer is responsible for shipping the pedal to Pendletone Effects for evaluation. For an approved claim, Pendletone Effects will repair or replace the pedal at its discretion and cover shipping back to the customer.
Frequently Asked Questions
Does the Gain knob control distortion?
No. On UXO, Gain controls the pedal’s output volume. Turn it clockwise to increase level and push the amplifier or next pedal harder.
What does the Fuse control do?
Fuse adjusts the transistor bias.
Turn it counterclockwise for a lighter, cleaner, more open overdrive response. Turn it clockwise for denser saturation, a rougher edge, and a sound that approaches fuzz territory.
Does UXO become sputtery or gated?
No. Fuse can push UXO toward rougher, near-fuzz saturation, but the pedal does not collapse into sputtery or gated breakup.
Does it clean up from the guitar’s volume control?
Yes. UXO cleans up smoothly from the guitar’s volume control, including at its more saturated Fuse settings.
What does the Tone control do?
Tone moves from darker counterclockwise to brighter clockwise.
Is UXO mainly a boost or a primary drive?
UXO is designed primarily as the main drive voice in a rig. It can pair well with other gain pedals, but its own raw, saturated character is intended to carry the sound.
Does it run on a battery?
No. UXO requires a standard 9V center-negative DC power supply.
Is a power supply included?
No.
Make UXO the center of the gain sound
Set Fuse for the amount of density and saturation you want, use Gain to establish output level, and shape the top end with Tone.
From lighter, open overdrive to rougher near-fuzz saturation, UXO stays touch-sensitive and responsive to the guitar’s volume control.
