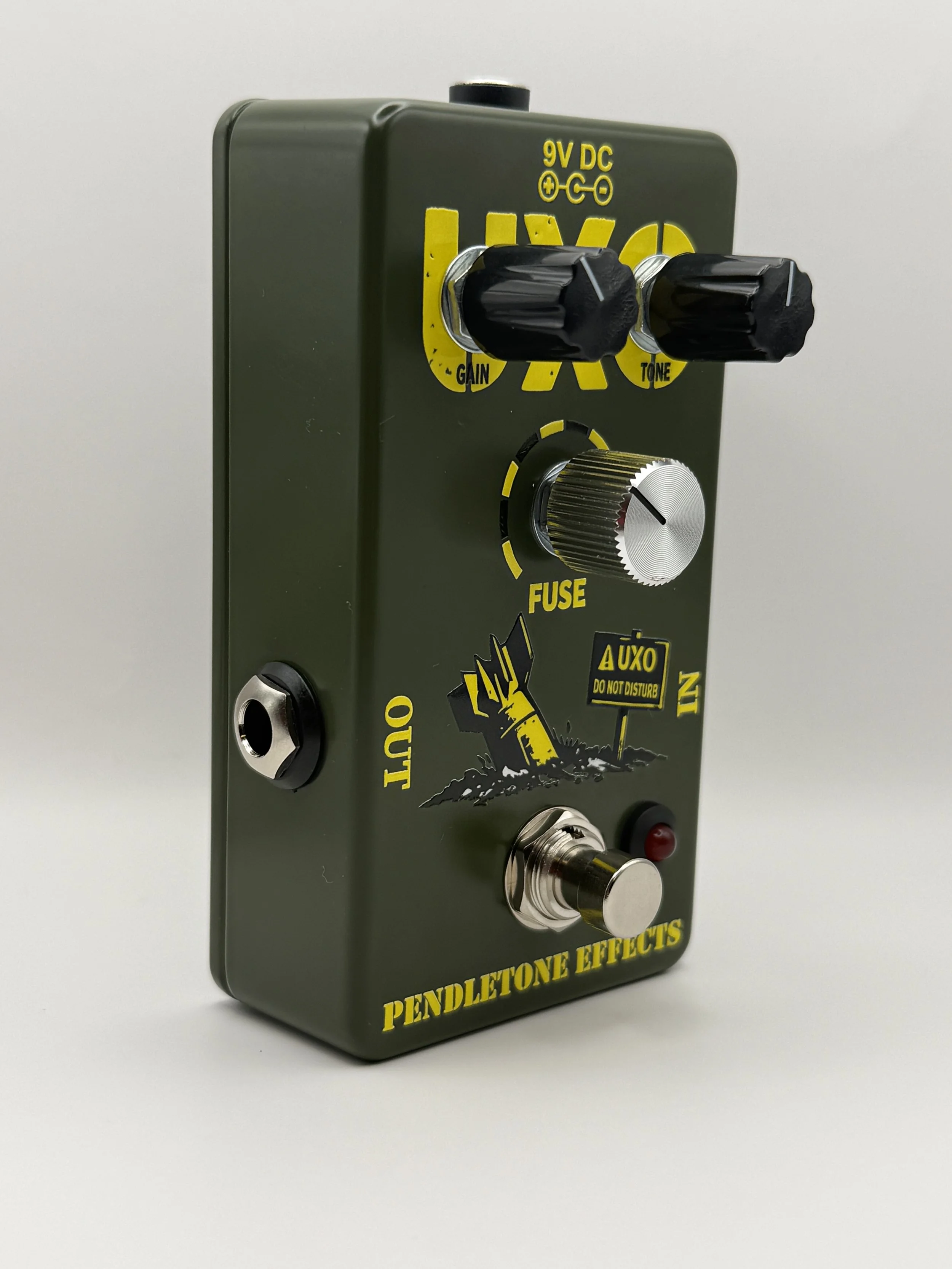

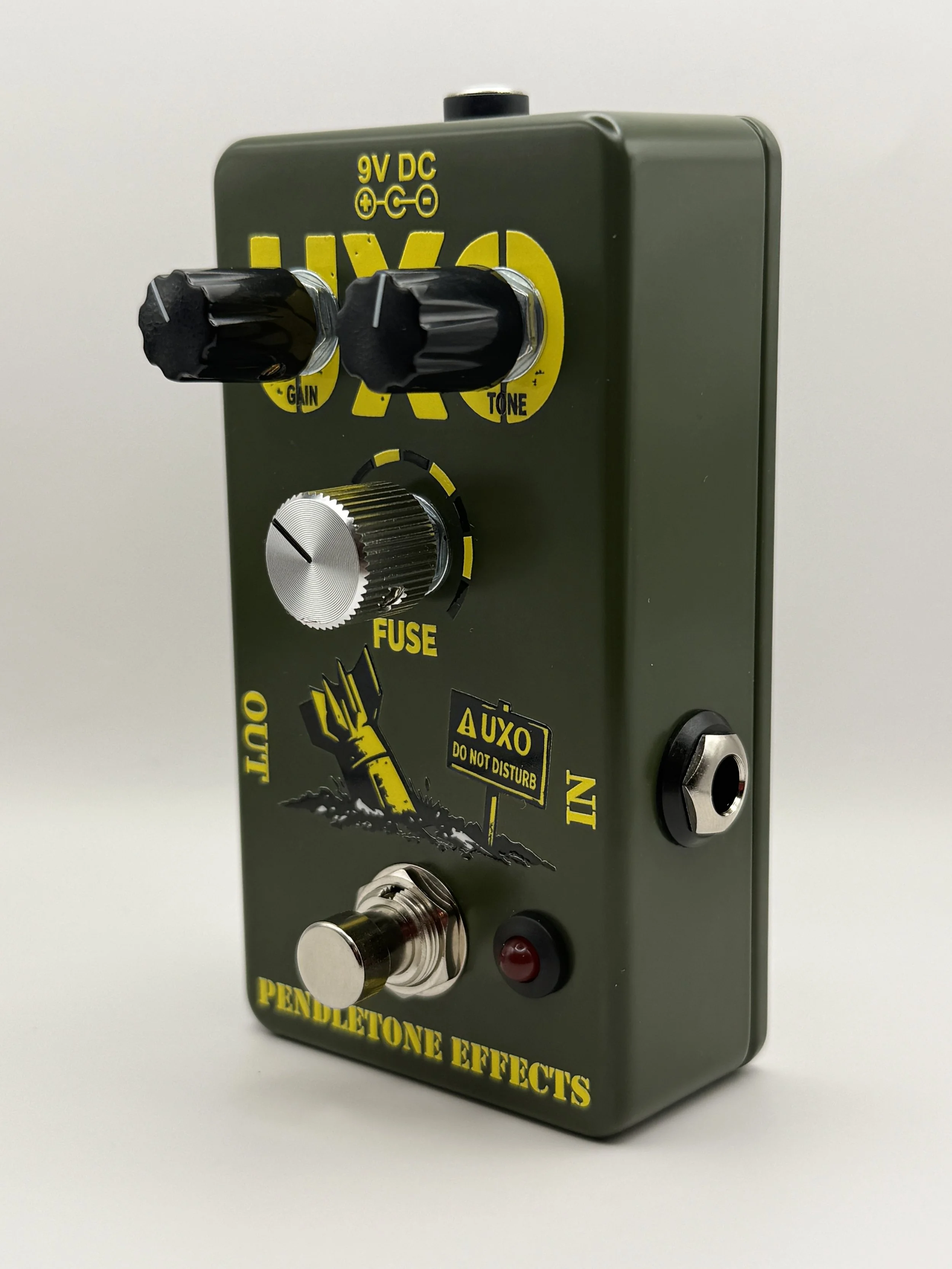

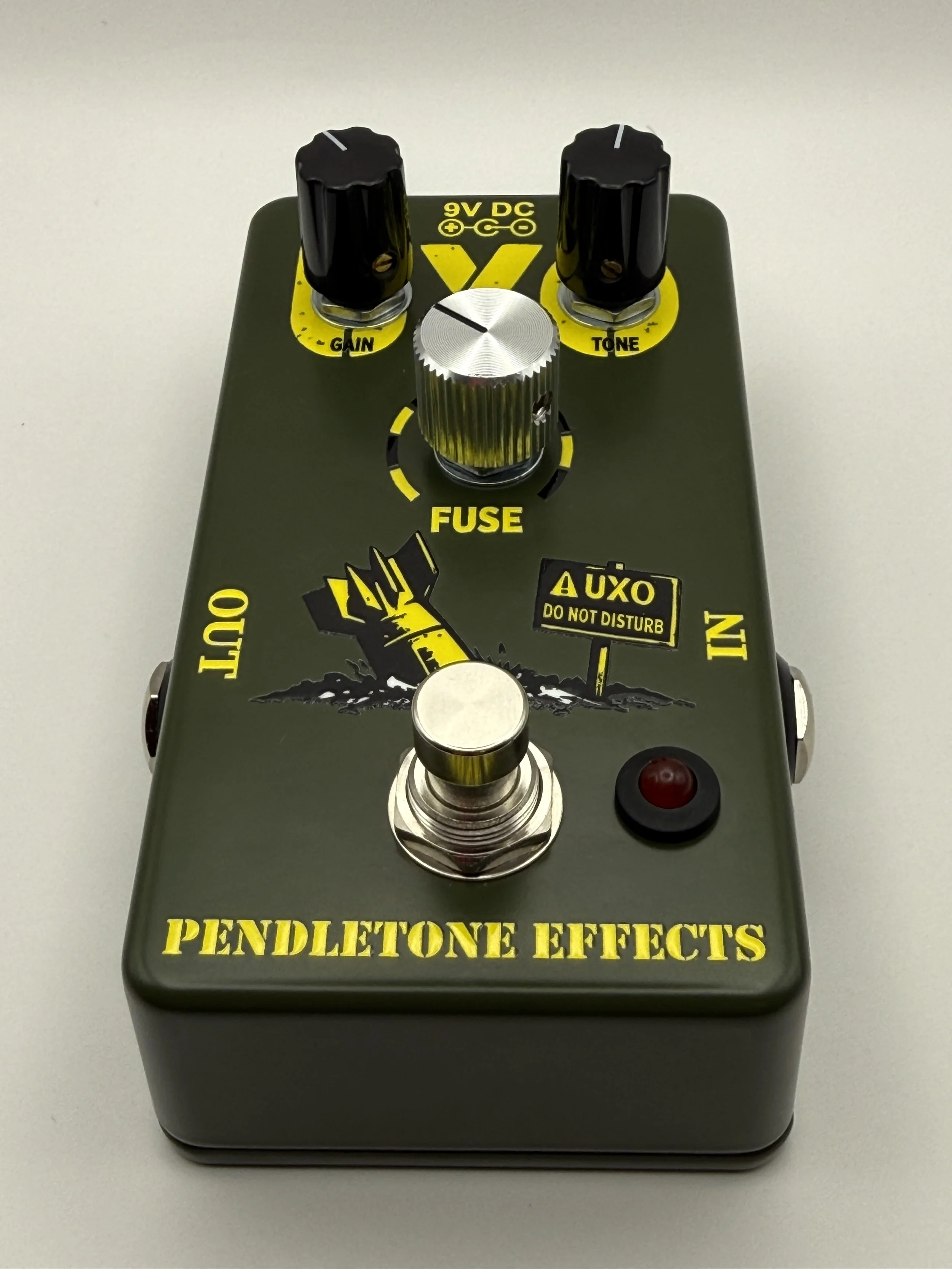

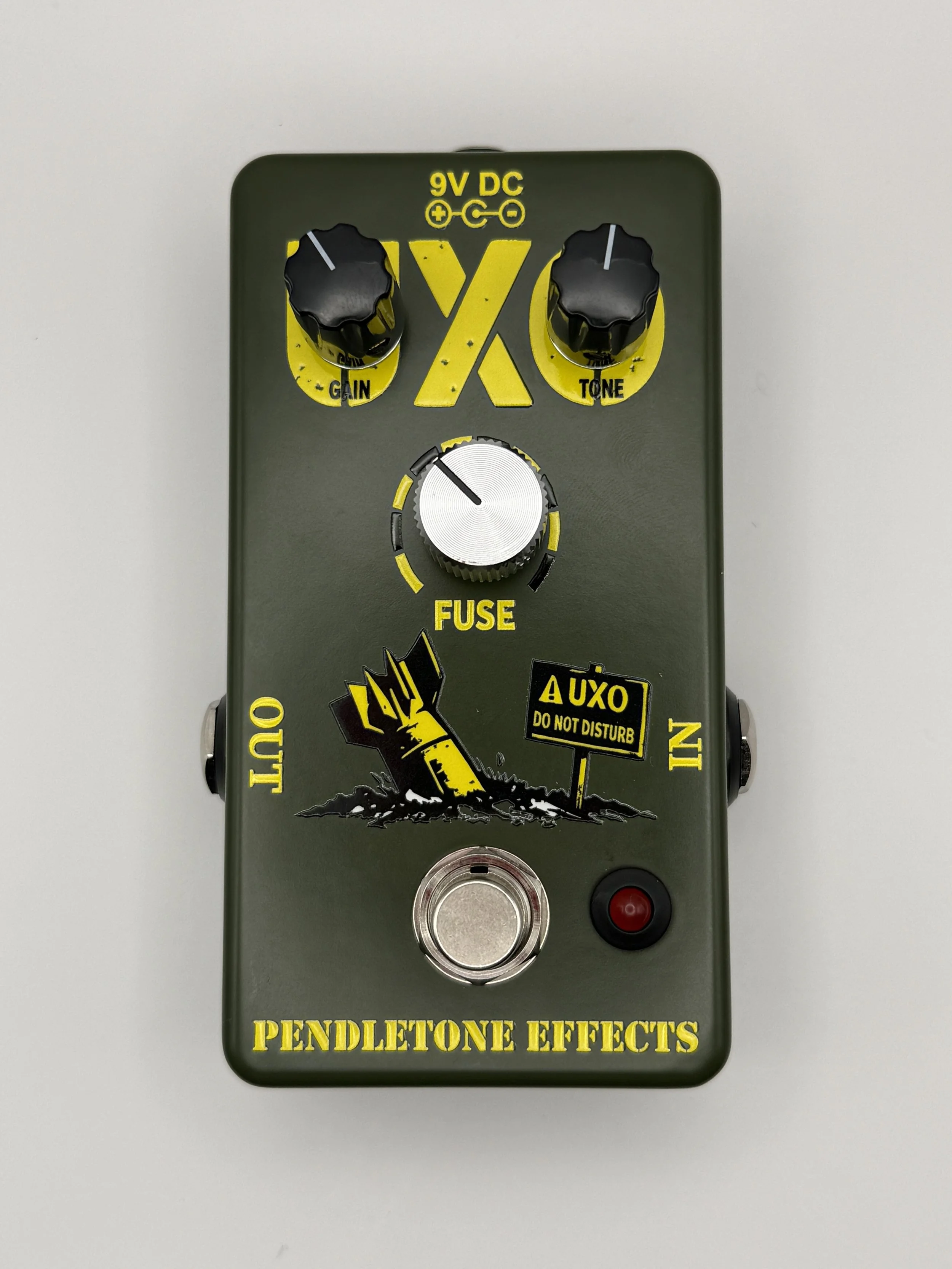

UXO is a raw, touch-sensitive aggressive medium-gain overdrive designed to serve as the primary drive voice in your rig.
Its external Fuse control adjusts the transistor bias, moving the pedal from lighter, more open overdrive toward a denser, rougher and more saturated response. At higher Fuse settings, UXO approaches fuzz territory without becoming sputtery or gated.
Even at its more saturated settings, UXO cleans up smoothly from the guitar’s volume control. Dig in or turn the guitar up for the full drive response, then roll the volume back for a cleaner, more restrained sound.
UXO’s three controls provide a broad but straightforward range:
GAIN — OUTPUT VOLUME
Despite its label, Gain controls the pedal’s output level rather than the amount of distortion. Turn it clockwise to increase volume and push the amplifier or next pedal harder.
FUSE — TRANSISTOR BIAS
Turn Fuse counterclockwise for a lighter, cleaner and more open drive response.
Turn it clockwise for denser saturation, a rougher edge and a sound that approaches fuzz territory without collapsing into sputter or gated breakup.
TONE — DARK TO BRIGHT
Turn Tone counterclockwise for a darker sound and clockwise for a brighter response.
UXO is best suited for players who want:
• A raw, aggressive medium-gain overdrive
• A primary drive voice rather than a simple boost
• Touch-sensitive response to pick attack
• Smooth cleanup from the guitar’s volume control
• External control over transistor bias
• A range from lighter overdrive to dense, near-fuzz saturation
It may not be the right fit if you want a smooth, heavily compressed drive, a conventional gain knob that simply adds more distortion, or sputtery and gated voltage-starved sounds.
CONSTRUCTION

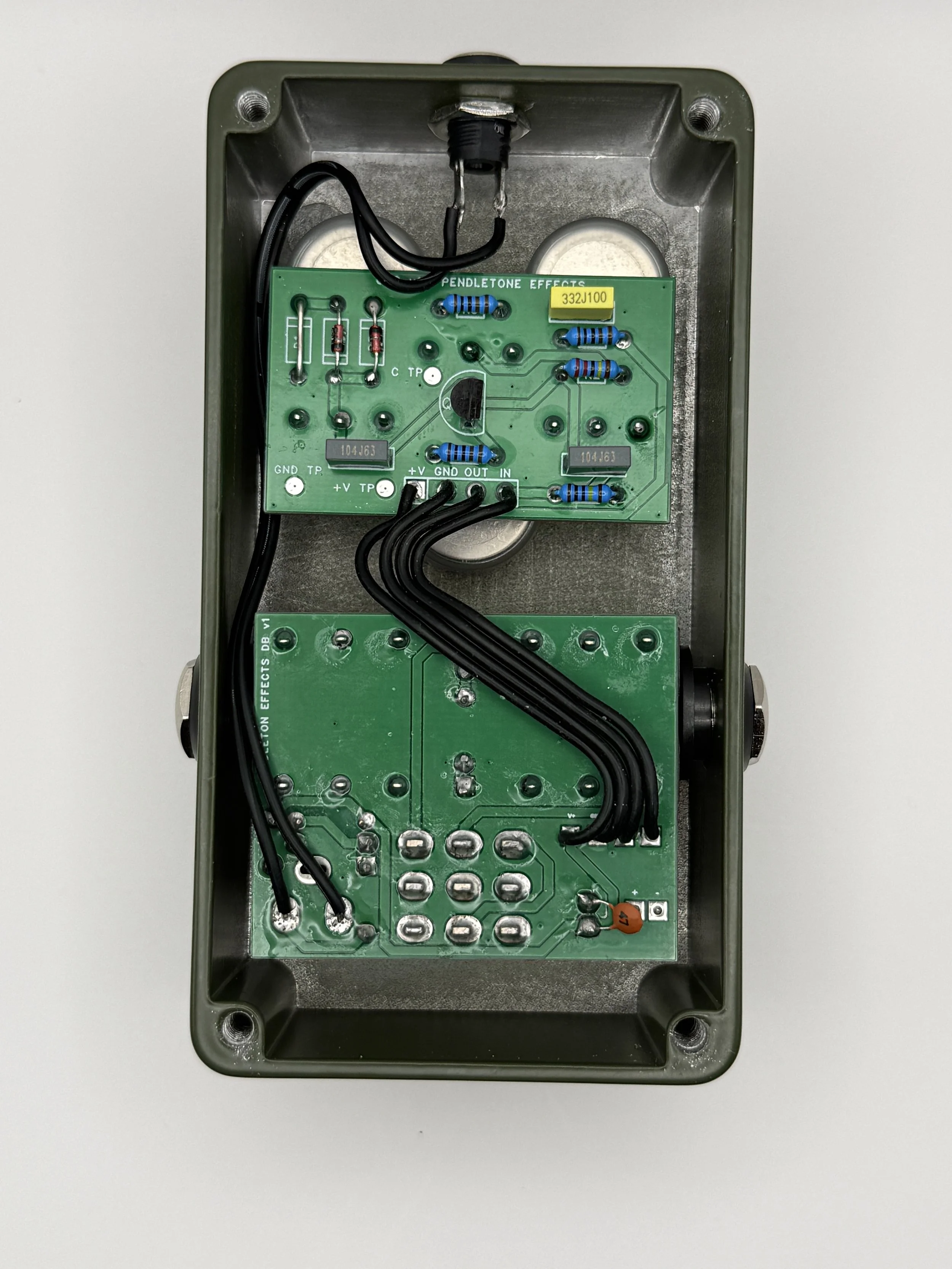

Each UXO is hand assembled by Pendletone Effects using through-hole components on a professionally manufactured printed circuit board.
Every pedal is individually tested before shipping, then dated, serialized and signed inside the enclosure.
SPECIFICATIONS
Effect type: Aggressive medium-gain overdrive
Controls: Gain, Fuse and Tone
Gain control function: Output volume
Fuse control: External transistor-bias adjustment
Drive range: Light, open overdrive to dense saturation approaching fuzz
Bypass: True bypass
Switching: Soft-click footswitch
Power: Standard 9V DC, center-negative
Battery operation: Not supported
Power supply included: No
Enclosure: Standard 1590B
Dimensions: 67 × 117 × 52 mm / 2.64 × 4.61 × 2.05 in
Measurement basis: Includes installed knobs and jacks

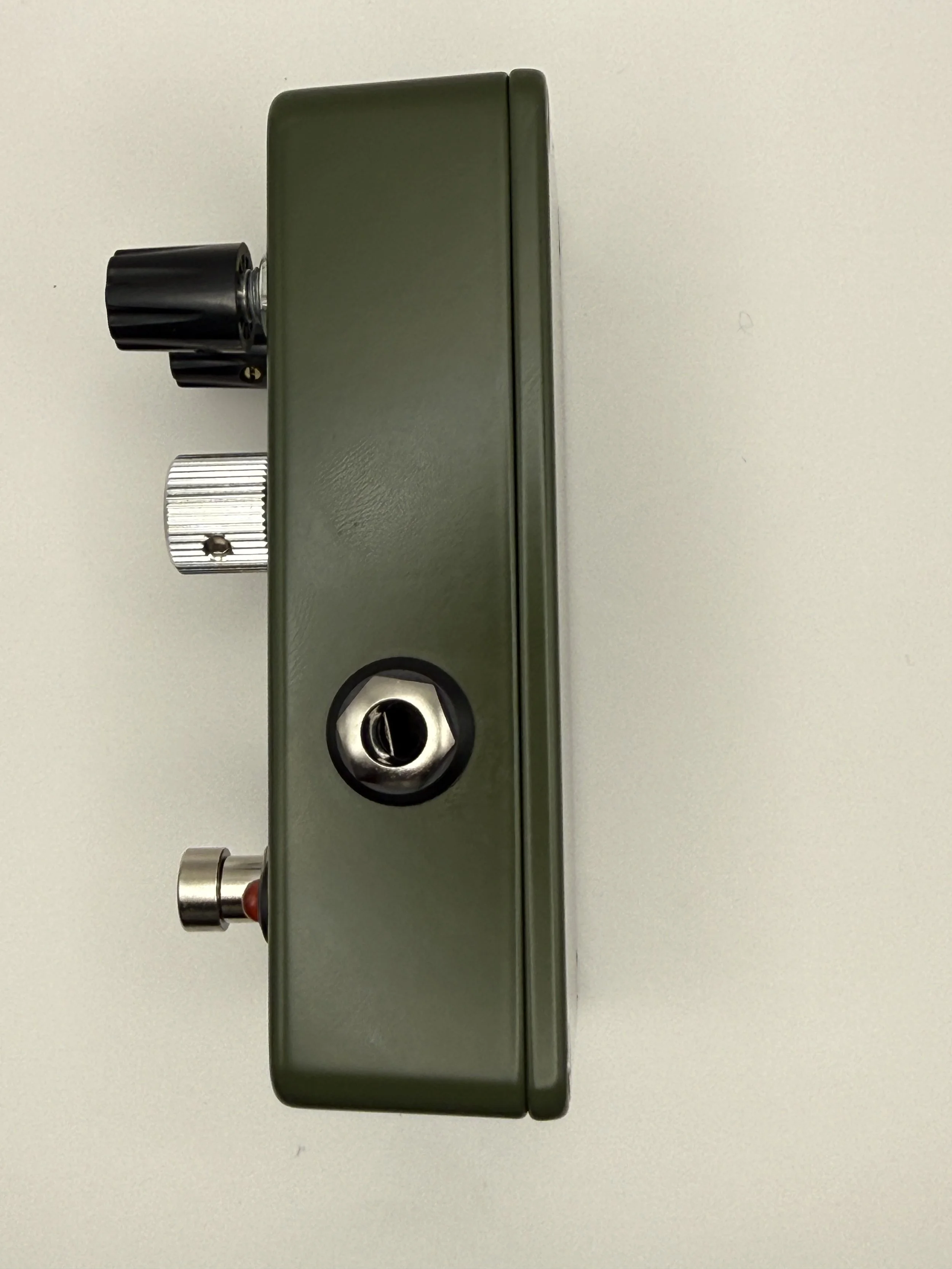

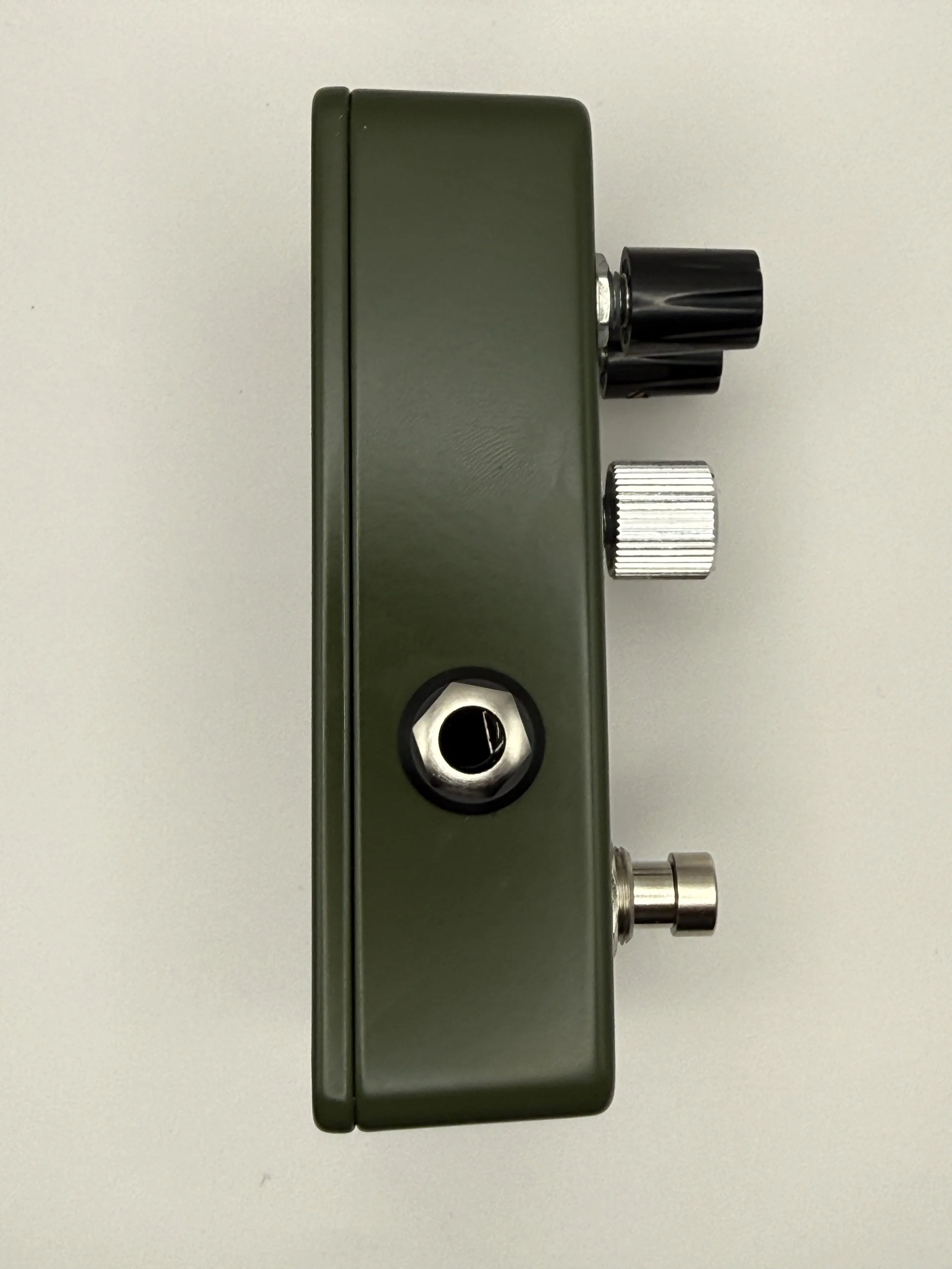

Input and output: Side mounted

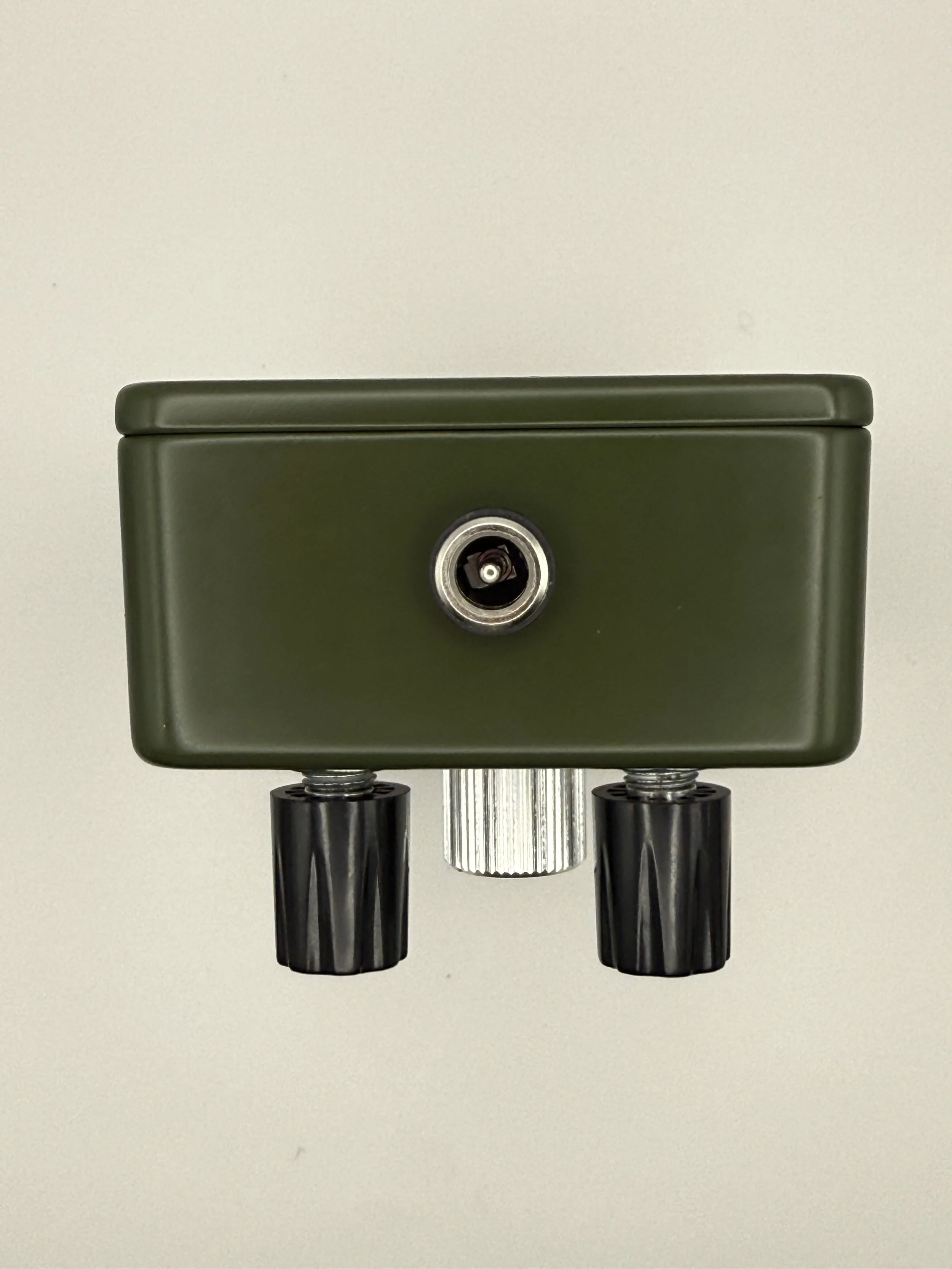

Power connection: Top mounted
Made in: Fort Leavenworth, Kansas, USA
SHIPPING
UXO is currently in stock.
In-stock orders normally ship through USPS within two business days of purchase, excluding weekends and holidays. Pendletone Effects currently ships within the United States only.
Included with purchase: UXO overdrive pedal. Power supply not included.
FOUR-YEAR LIMITED WARRANTY
UXO includes a four-year limited warranty for the original purchaser, beginning on the original purchase date. Proof of purchase is required.
The warranty covers manufacturing defects. It does not cover damage caused by abuse, incorrect power or environmental exposure.
The customer is responsible for shipping the pedal to Pendletone Effects for evaluation. For an approved claim, Pendletone Effects will repair or replace the pedal at its discretion and cover shipping back to the customer.
